S520 Golden Grow Light
S520 Golden Grow Light is a kind of artificial light source which uses LED (light-emitting diode) as luminous body to meet the lighting conditions of plant photosynthesis. In the environment without sunlight, the S520 Golden Grow Light can act as sunlight to enable plants to grow normally or better.
Advantages of S520 Golden Grow Lights
- S520 Golden Grow Light has rich wavelength types, which is just consistent with the spectral range of plant light synthesis and light morphogenesis. The light can be combined to obtain pure monochromatic light and composite spectrum as required. It can concentrate light of specific wavelength to irradiate crops evenly, so as to regulate plant flowering and fruiting, and control plant height and plant nutrients. S520 Golden Grow Light has the advantages of less heating and small occupied space. S520 Golden Grow Lights can be used in multi-layer cultivation three-dimensional combination system to realize low heat load and miniaturization of production space.
High quality doesn’t have to be expensive!
Supreme’s LED grow lights deliver the same professional performance and brightness — at a much more affordable price.
They don’t just save energy and cost, but also boost your yield — one light, multiple benefits, unbeatable value!
Specifications
- Light Source
- LED
- Light Output PPF
- 1400 μmol/s
- Efficacy
- 2.9 μmol/J @ 277V AC
- AC Input Power
- 498 W @ 277V AC
- AC Input Voltage
- 120–277V AC @ 50/60 Hz
- Power Factor
- > 95
- Dimming
- 0–10V Source
- Light Beam Angle
- 120°

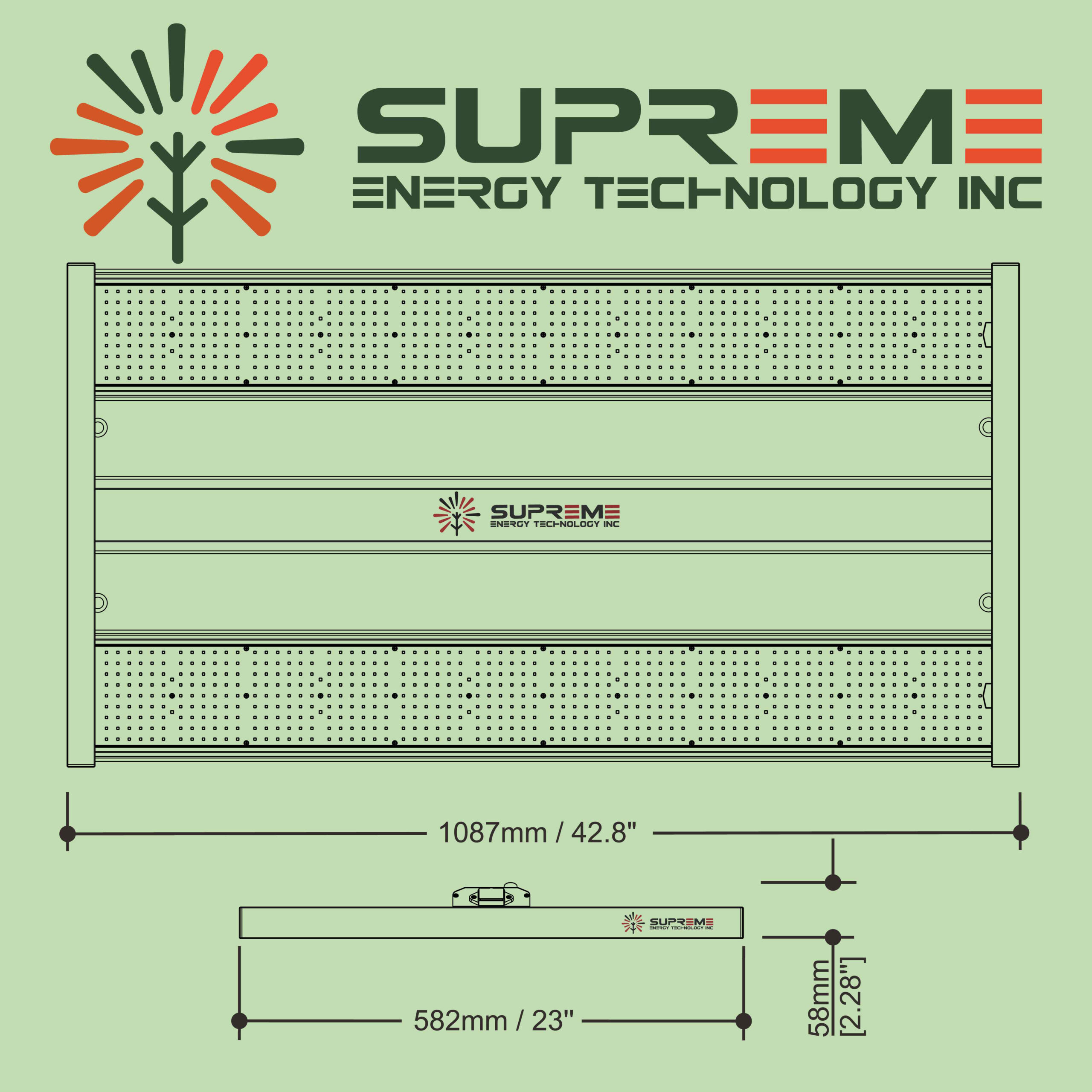

- Fixture Dimensions
- 43"L × 23"W × 2.3"H
- Fixture Weight
- 19.5 lbs
- Thermal Management
- Passive
- Max. Ambient Temperature
- 95°F / 35°C
- Mounting Height
- 6–12 inches
- Lifetime
- L90: > 50,000 hrs
- Certifications
- UL8800, UL1598, DLC
- Warranty
- 5 Years Standard Warranty
High quality doesn't have to be expensive!
Supreme’s LED grow lights deliver the same professional performance and brightness — at a much more affordable price.
They don’t just save energy and cost, but also boost your yield — one light, multiple benefits, unbeatable value!
| 120V | 208V | 220V | 230V | 240V | 250V | 277V | |
|---|---|---|---|---|---|---|---|
| AC Current | 4.34A | 2.42A | 2.29A | 2.20A | 2.10A | 2.02A | 1.84A |
| AC Power | 524W | 502W | 501W | 500W | 500W | 499W | 498W |
| Power Factor | 0.999 | 0.989 | 0.985 | 0.981 | 0.977 | 0.973 | 0.955 |
* Nominal electrical AC input, power tolerance ±5%.
* At 77°F (25°C) ambient temperature.

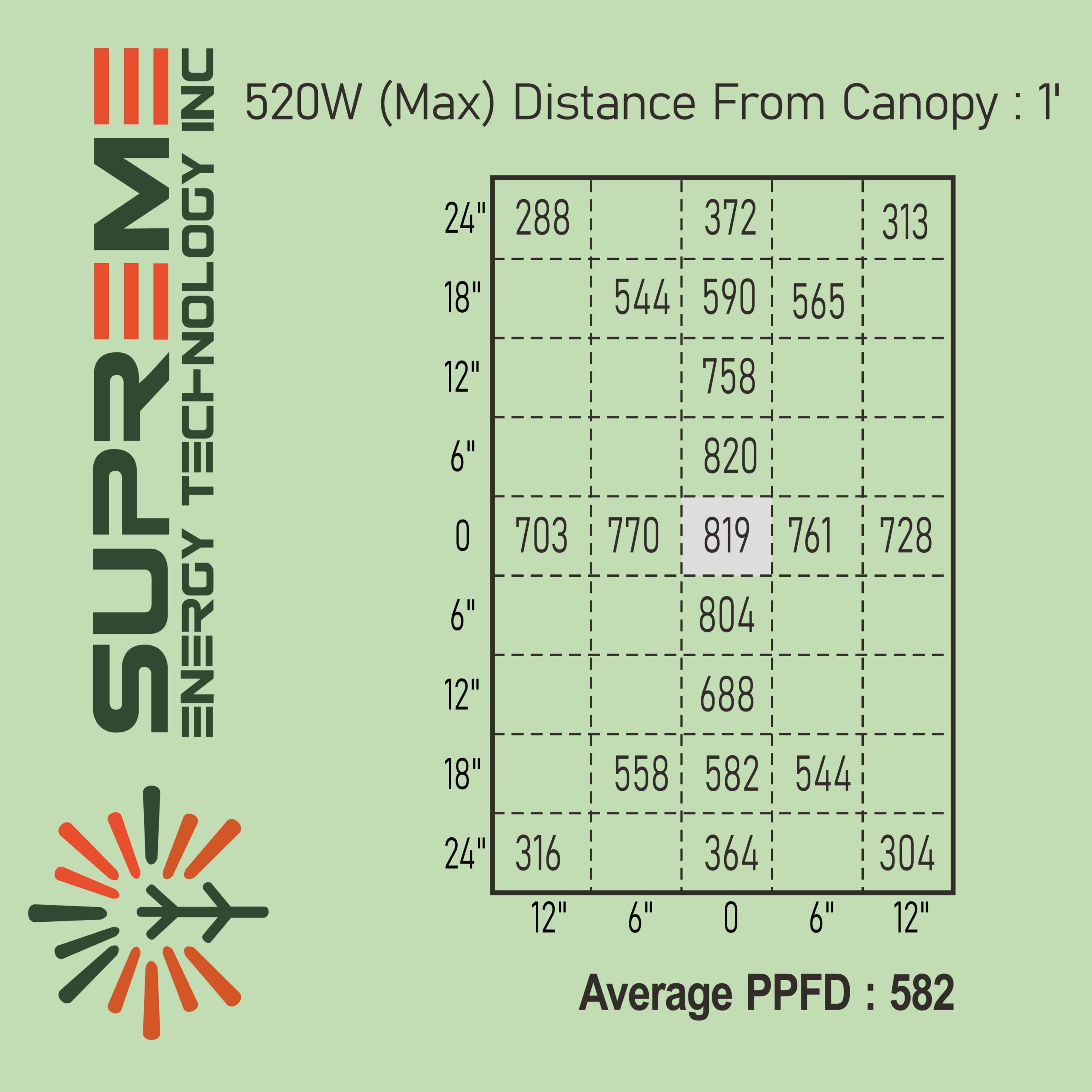

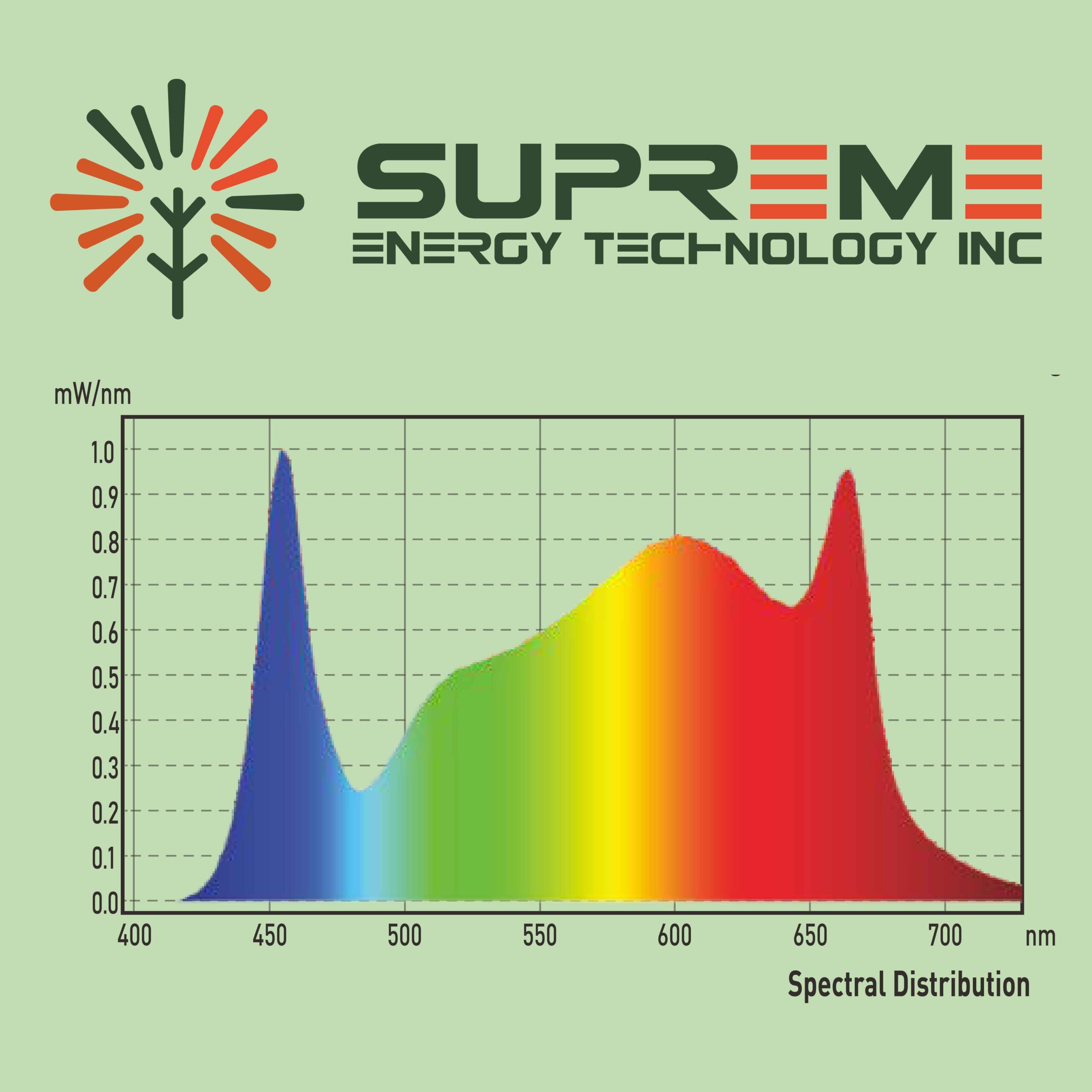

Product Spectrum & PPFD Reading

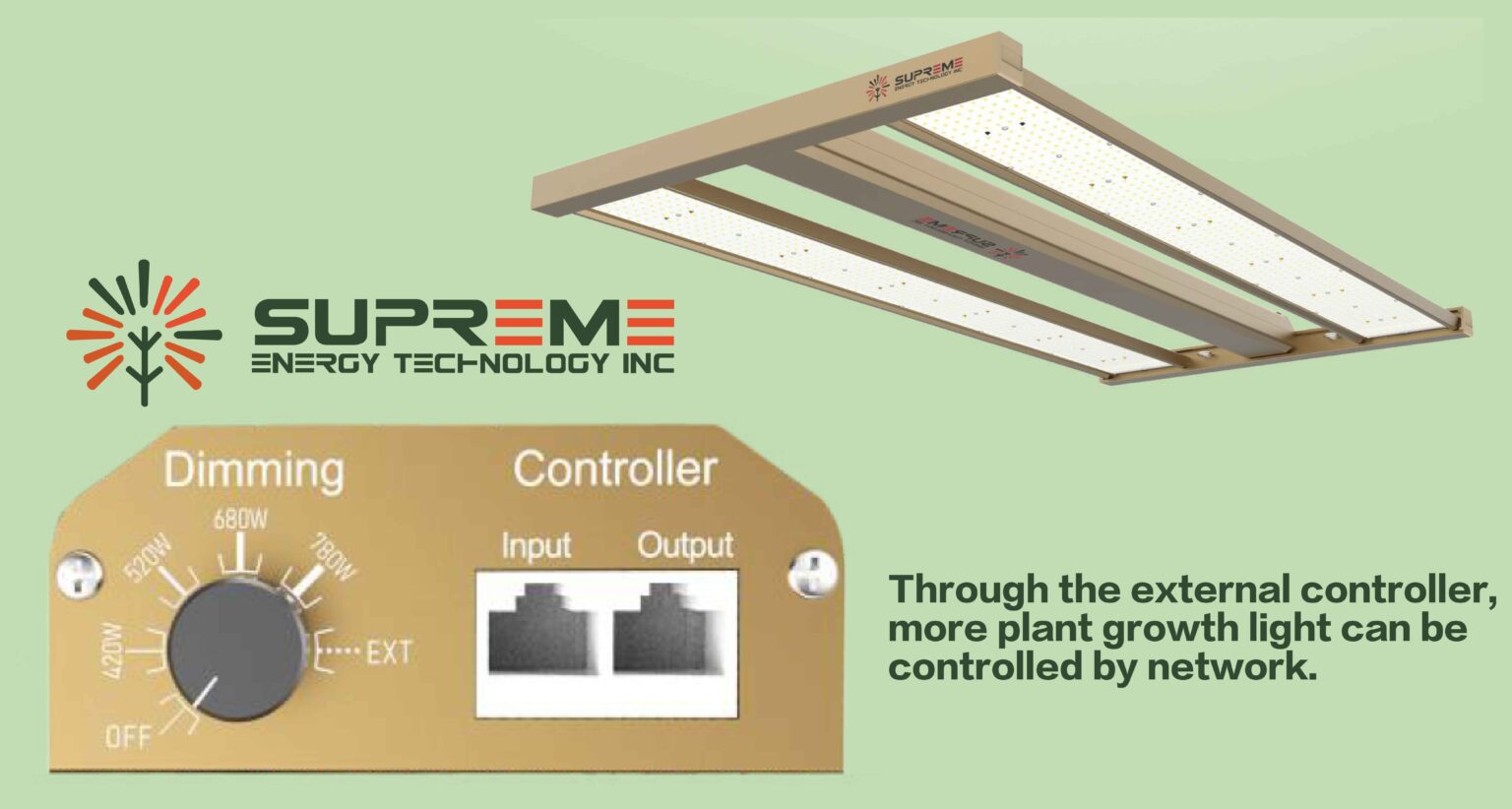

| Knob Position | Power Level | Input Watts |
|---|---|---|
| 0 | 0% | 0W |
| 1 | 48% | 250W |
| 2 | 67% | 350W |
| 3 | 81% | 420W |
| 4 | 100% | 520W |
| 5 | External controller | |
Specifications & Resources
S520 Golden Grow Light has strong durability and low operation cost. It is very suitable for plant cultivation in controllable facility environment, such as plant tissue culture, facility horticulture, and industrialized seedling raising, aerospace ecological life insurance system, and so on.
S520 Golden Grow Lights — Product Information
To learn more about the S520 Series LED Grow Lights, please download the official PDF document. Inside, you’ll find: complete technical specifications, PPFD distribution maps and recommended hanging heights, efficacy and power consumption data, dimming and installation guidelines, as well as certifications and warranty details. This resource will help you quickly evaluate whether the S520 is the right solution for your cultivation needs and environment.
Case Studies
Who Uses the S520 Series LED Grow Lights
The S520 Series is designed for high-value and cash crops. Typical users include:
- Home growers: Supplemental lighting for indoor plants to improve growth and vitality.
- Research institutions: Controlled experiments requiring precise spectrum and intensity.
- Greenhouses & vertical farms: Shorten crop cycles, manage flowering windows, and optimize yields for premium crops.
Why S520
With targeted spectra and high efficacy, the S520 helps accelerate growth, fine-tune flowering, and increase quality—making it an ideal choice wherever performance and ROI matter most.
